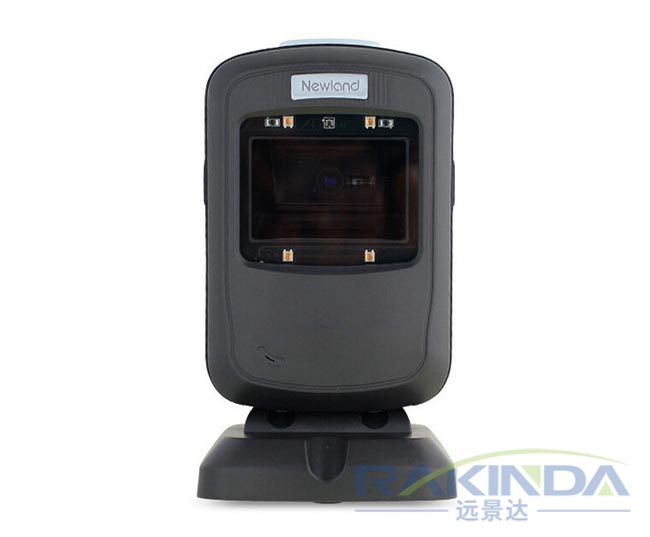

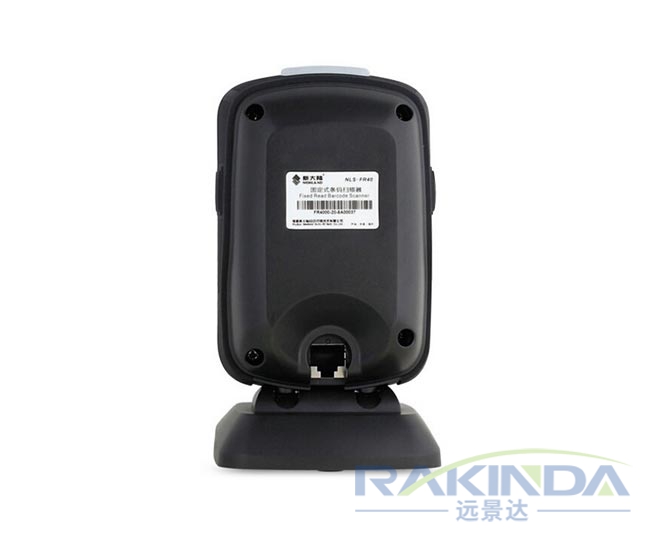

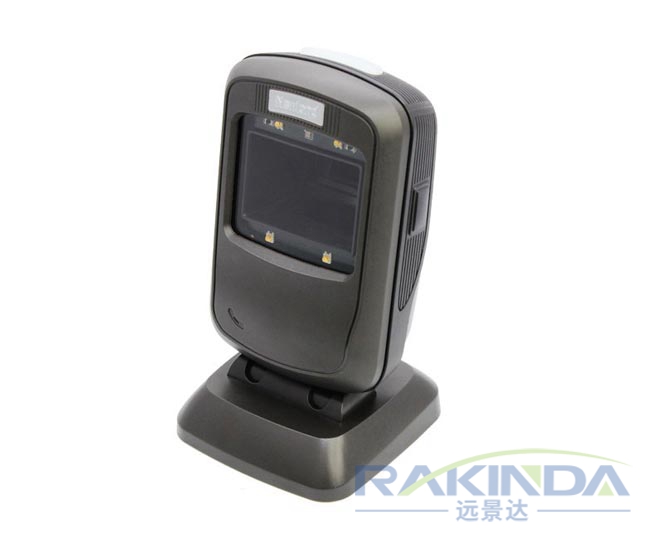

FR40 Kichanganuzi cha Msimbo wa Nambari 2D wa Kompyuta

FR40 Kichanganuzi cha Msimbo wa Nambari 2D wa Kompyuta

Utangulizi wa Bidhaa:

Category：Desktop Barcode Scanner

Product ID：FR40

Product Introduction：FR40 Series desktop two-dimensional code scanning platform can quickly read the one-dimensional or two-dimensional bar code of screen and paper.

Uliza Sasa RK8120 Scanner ya Barcode ya Laser

Maelezo ya bidhaa

INTRODUCE

FR40 Series desktop two-dimensional code scanning platform can quickly read the one-dimensional or two-dimensional bar code of screen and paper. The model supports RS-232 / USB and other PC interfaces, durable, with a good price. Very suitable for supermarkets, shopping malls and warehouses and other environments.

FEATURES

*Quick to Switch Mode

The Scan Mode Switch at the top of the scanner allows users to swiftly toggle between the Regular and Screen modes.

*Superior Motion Tolerance

Exceptional motion tolerance (2.5m/s) and large FOV (46°) enhance user experience.

*IP50-rated Sealing

An IP50-rated seal renders the scanner impervious to dust, water and other contaminant.

*Superb Reading Performance

Armed with Newland’s fifth-generation of UIMG technology, the scanner is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film.

*1.2m Drop Resistance

The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).

*IR Trigger

The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

Application Scenarios

POS terminals, customer service desk, ticket validators.

SPECIFICATIONS

Utendaji	Sura ya Picha	752 * 480 CMOS
	Ishara	2D PDF417, Msimbo wa QR, Matrix ya Takwimu, Nambari ya busara ya Wachina
		1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,
		Nambari 128, Nambari 93, ITF-6, ITF-14, Iliyounganishwa 2 kati ya 5,
		Viwanda 2 ya 5, Kiwango 2 cha 5, Matrix 2 ya 5, GS1 Databar, Nambari 39, Nambari 11, MSI-Plessey, Plessey, n.k
	Azimio	Il5mil
	Kina cha kawaida cha uwanja	Nambari 39 40-200mm (20mil)
		EAN-13 5-180mm (13mil)
		Nambari ya QR 10-180mm (20mil)
	Uvumilivu wa Mwendo	2.5m / s
	Skena Angle	Piga ± 60 ° @ 0 ° Roll na 0 ° Skew
		Roll ± 360 ° @ 0 ° Pitch na 0 ° Skew
		Skew ± 55 ° @ 0 ° Roll na 0 ° Pitch
	Tofauti ya Alama	≥25%
	Kiolesura	RS-232, USB
Kimwili /	Vipimo (L × W × H)	83 × 81 × 148mm
Umeme	Vipimo (L × W × H)	83 × 81 × 148mm
	Uzito	292g
	Arifa	Beep, kiashiria cha LED
	Sasa	Uendeshaji 150mA
		Kusubiri 120mA
Mazingira	Joto la Uendeshaji	-20 ℃ ~ 50 ℃
	Joto la Uhifadhi	-40 ℃ ~ 70 ℃
	Unyevu	5% ~ 95% (isiyo ya kubana)
	ESD	± 14 kV (kutokwa na hewa), ± 8 kV (kutokwa moja kwa moja)
	Tone	Matone 1.2m kwa saruji (kwa pande sita, tone moja kwa kila upande)
	Kuweka muhuri	IP50
Vyeti	Darasa la FCC Part15 B, CE EMC Hatari B
Vifaa	Cable	USB Inatumiwa kuunganisha skana kwa kifaa cha mwenyeji.
Vifaa	Cable	RS-232 Ikiwa na kontakt ya umeme; kutumika kuunganisha skana kwa kifaa cha mwenyeji.
	Adapter ya Nguvu	Inatumika kutoa nguvu kwa skana.
	Adapter ya Nguvu	Pato: DC5V, 1.5A; Ingizo: AC100 ~ 240V, 50 ~ 60Hz
