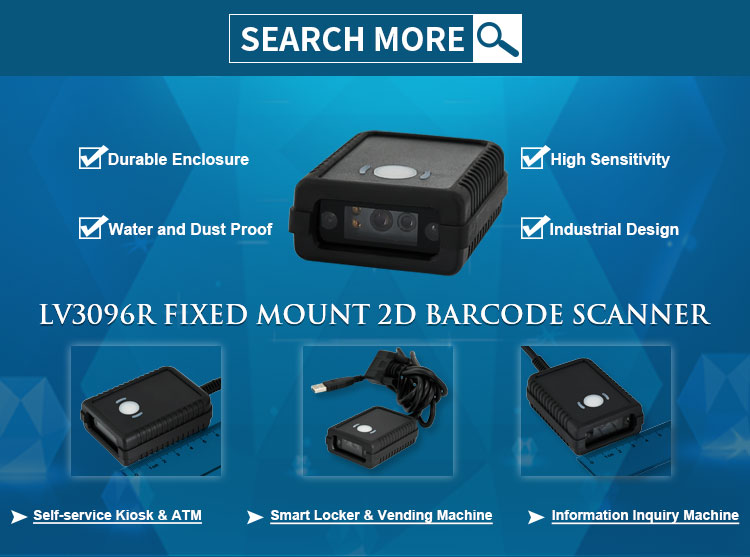

LV3096R 2D Fasta ya Msimbo wa Barcode Mlima

LV3096R 2D Fasta ya Msimbo wa Barcode Mlima

Jamii: Mchapishaji wa Mtaa wa Badi ya Mlima wa 2D ID: LV3096R Views: 2998

Moduli ya Scanner ya LV3096R QR inaweza kuwa na utoaji wa haraka na huduma bora, Scanner hii ya msomaji wa QR kwa utendaji mzuri kusoma 1D na 2D kwa sawa.

Utangulizi wa Bidhaa: LV3096R ina interface ni USB au RS232.Inaweza kuingizwa kwenye Kiosk / Vending Machine / Locker ili kusoma barcodes zilizochapishwa au skrini. LV3096R ina bei nzuri na inaweza kutolewa huduma za OEM zilizoboreshwa.

Uliza Sasa Bidhaa inayofuata

Maelezo ya bidhaa

LV3096R 2D Fasta ya Msimbo wa Barcode Mlima

(1) Kubuni ni rahisi kuunganisha kwenye kifaa chako cha terminal.kubwa kwa ukubwa wa kubuni wa ushirikiano wa shell rahisi katika ufumbuzi mbalimbali. Scanner hii ya 2D iliyobaki ya barcdoe ina uundaji wa IP54 na ni vumbi na maji-ushahidi

(2) Ina sifa yafuatayo:

Watoto wa 1.IR/Light

2. Udhibiti wa Ufafanuzi wa Automatic (AEC)

3.IP54-muhuri Nyumba

Masomo ya Kusoma: Viwango vyote vya kimataifa vya barcodes 1 na QR Scanner, PDF417, Data Matrix

5.1.5m Weka Upinzani

Specifications Bidhaa:

Model:	LV3096R
Interface	USB/RS232
Image Sensor	752×480 CMOS
Reading Precision	≥ 5mil
Rated Power Consumption	0.79 W
Symbologies	2D:PDF 417, Data Matrix（ ECC200,ECC000,050,080,100,140) ,QR Code 1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Operating Voltage	5V DC
Operating Current	240 mA
Dimensions :	69.46(L)×48.11(W)×22.15(H)mm
Weight	80 g
Operating Temperature	-20℃~ +60℃
Storage Temperature	-40℃~ +80℃
Humidity	5% ~ 95% (non-condensing)
Ambient Light	0 ~ 100000 lux (natural light)
FCC Part15 Class B, CE EMC Class B Cable RS232 Cable Used to connect the LV3096R to a host device; Equipped with a power; USB Cable Used to connect the LV3096R to a host device. Power AdaptorUsed to provide power for the EVK3000.Output: DC5V, 2A; Input: AC100~240V, 50~60HzTest conditions: T=23℃, Illumination=300 LUXTest conditions:Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8;Barcode Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUXconnector.
